The AH line comprises 13 models ranging from the basic models with electromechanical controls to advanced models with electronic controls, equipped with PRS System (Atmospheric boiler + Break tank) and ES System (Energy recovery).

AH line professional dishwashers can be inserted into an actual integrated washing system using inlet and outlet tables guaranteeing an effective and efficient performance.

Perfect for washing plates, cutlery, glasses, cups, trays and other tableware, they can answer all the needs of medium and large-scale catering companies thanks to a usable wash height of up to 42 cm.

Models AH

AH-800-new

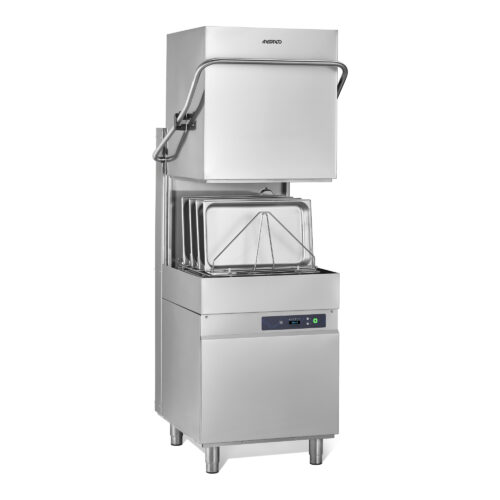

AH 800

Dimensions (WxDxH): 760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 40 – 30
Washing cycles: 90″- 120″
Total power: 6.750 W

  • Electromechanical controls
  • Multipower technology
  • Electric rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH

AH 800E

Dimensions (WxDxH): 760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″ – 9′
Total power: 6.750 W

  • Electronic management
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH

AH 1040E

Dimensions (WxDxH): 760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″ – 9′
Total power: 7.000 W

  • Electronic management
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH

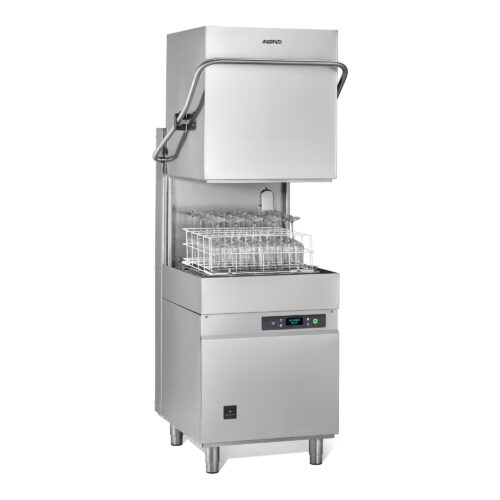

AH 1240E

Dimensions (WxDxH): 760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″ – 9′
Total power: 10.300 W

  • Electronic management
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH

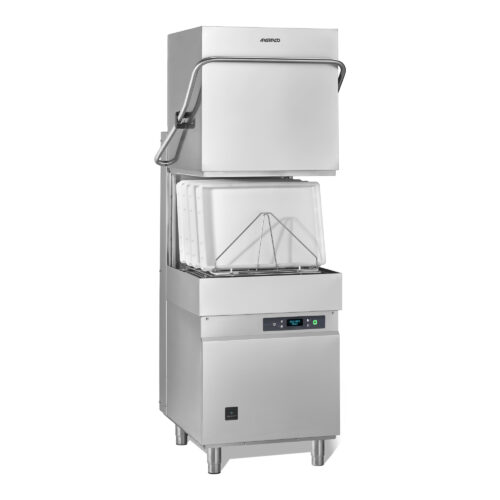

AH 60.42E XL

Dimensions (WxDxH): 681/785x793x1494/1969 mm
Basket sizes: 500×600 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″ – 9′
Total power: 10.300 W

  • Electronic management
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH

AH 800E PRS

Dimensions (WxDxH): 760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″ – 9′
Total power: 6.750 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH

AH 1040E PRS

Dimensions (WxDxH): 760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 -7
Washing cycles: 60″- 120″- 180″ -9′
Total power: 7000 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH

AH 1240E PRS

Dimensions (WxDxH): 760x793x1494/1969 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″ – 9′
Total power: 10.300 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH

AH 60.42E XL PRS

Dimensions (WxDxH): 681/785x793x1494/1969 mm
Basket sizes: 500×600 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles:: 60″- 120″- 180″ – 9′
Total power: 10.300 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH-ES

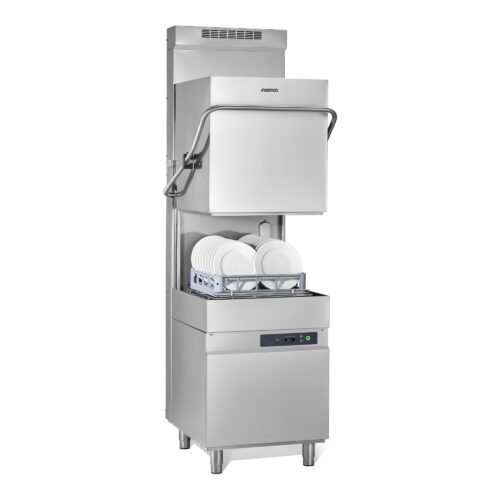

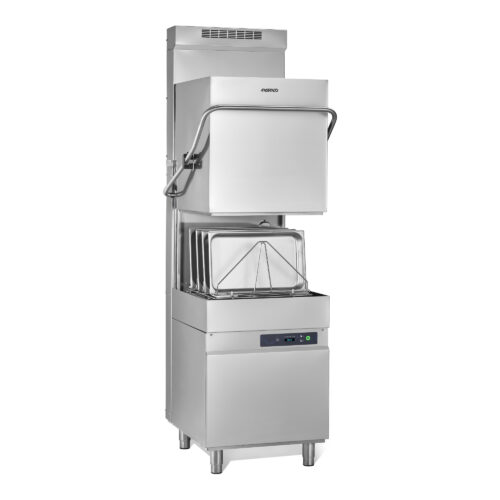

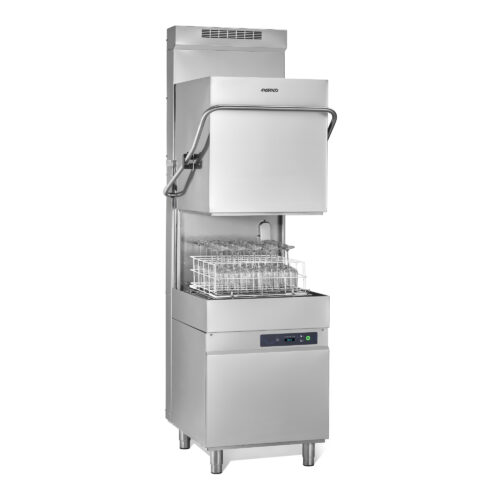

AH 800E ES

Dimensions (WxDxH): 760x793x2254 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″- 9′
Total power: 6.750 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • ES System = Energy Saving System
  • Double skinned insulated hood
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH-ES

AH 1040E ES

Dimensions (WxDxH): 760x793x2258 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″- 9′
Total power: 7.000 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • ES System = Energy Saving System
  • Double skinned insulated hood
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH-ES

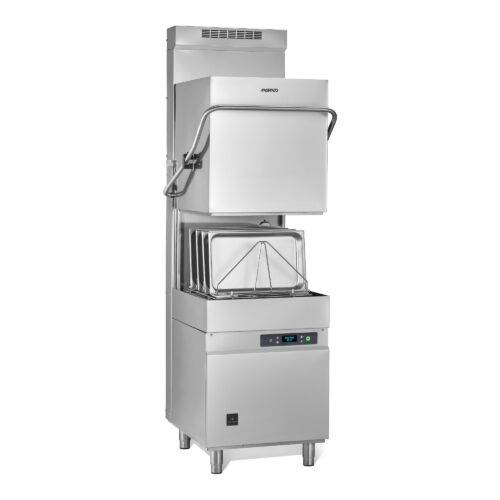

AH 1240E ES

Dimensions (WxDxH): 760x793x2254 mm
Basket sizes: 500×500 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″- 9′
Total power: 10.300 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • ES System = Energy Saving System
  • Double skinned insulated hood
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump
AH-ES

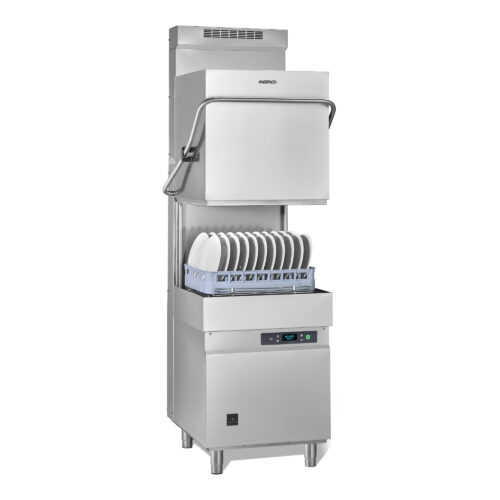

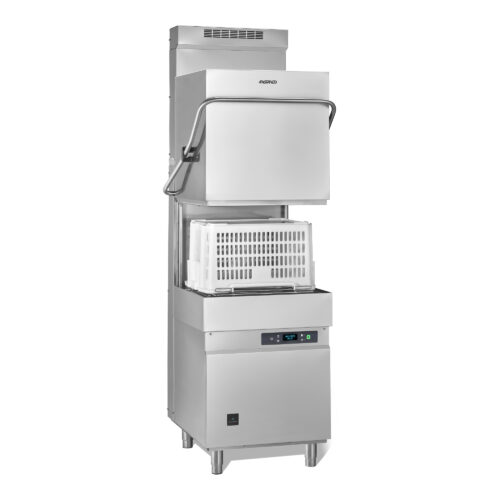

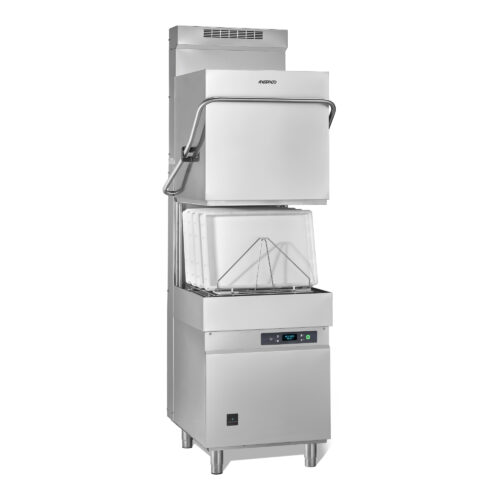

AH 60.42E XL ES

Dimensions (WxDxH): 681/778x793x2254 mm
Basket sizes: 500×600 mm
Racks/hour: 60 – 30 – 20 – 7
Washing cycles: 60″- 120″- 180″- 9′
Total power: 10.300 W

  • Electronic management
  • PRS System (Atmospheric boiler + Break tank)
  • ES System = Energy Saving System
  • Double skinned insulated hood
  • Multipower technology
  • Double electric detergent and rinse aid dispenser
  • Preformed wash tank
  • Triple water filtration
  • Stainless steel wash and rinse arms
  • Self cleaning vertical pump

Technical photos AH

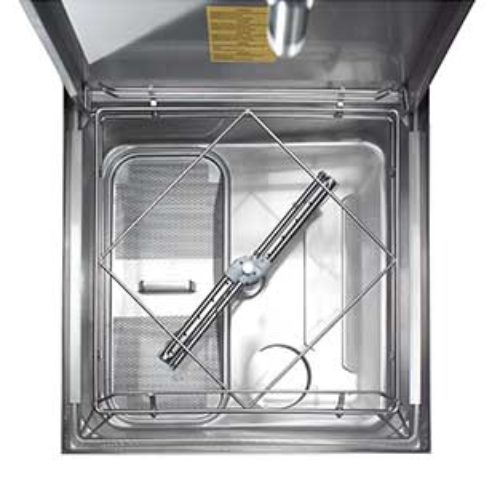

AH 800 internal detail
AH 800 internal detail

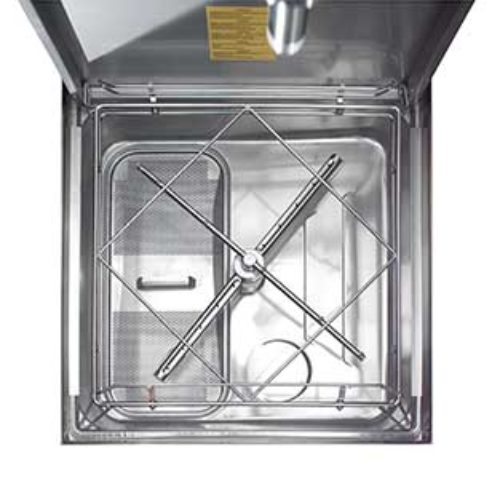

AH 1040 internal detail
AH 1040 internal detail

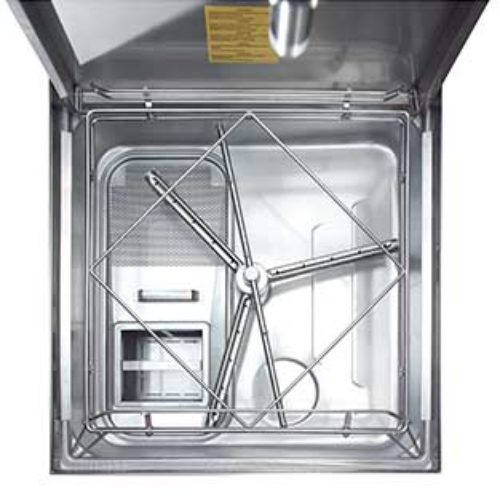

AH 1240 internal detail
AH 1240 internal detail
